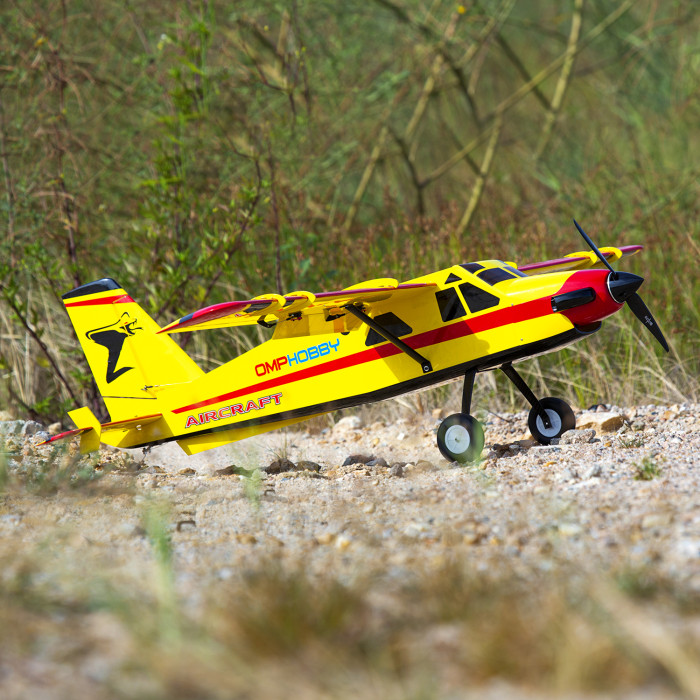

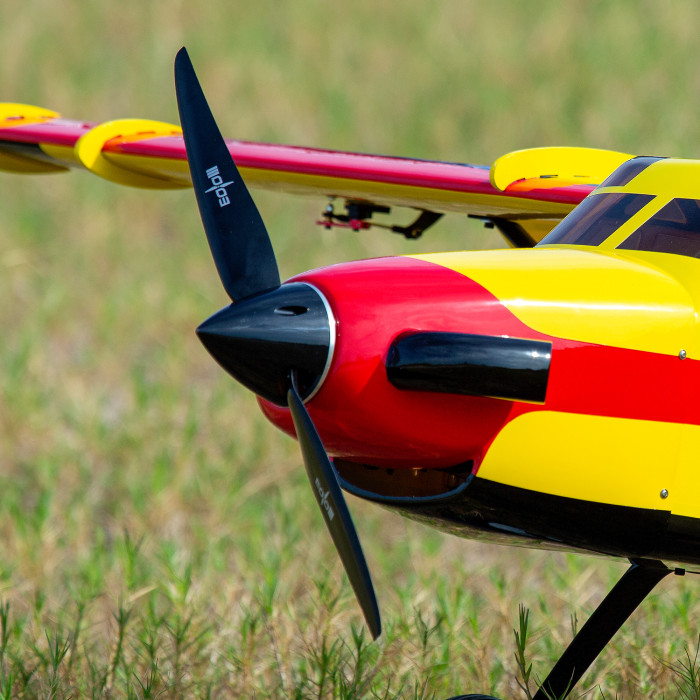

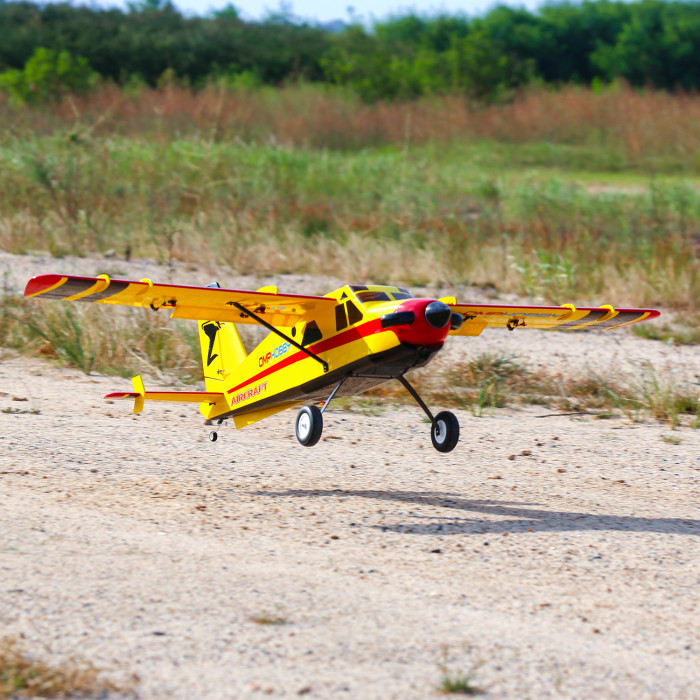

OMPHOBBY 65'' Bushmaster Balsa Airplane
-
- Product Name: OMPHOBBY 65'' Bushmaster Balsa Airplane
- Item NO.: Bushmaster 65''
- Weight: 32 kg = 70.5479 lb = 1128.7668 oz
- Category: Airplanes
- Tag: balsa wood
- Brand: OMPHOBBY
- Creation Time: 2022-11-29
- OMPHobby 65”Bushmaster this aircraft faithfully replicates the true designs of the real-life aircraft, the head of the aircraft is reinforced with composite splints, the fuselage uses carbon fiber beams, an easy-to-install Horizontal Stabilizer Elevator, and an integrated Elevator, there are also pontoon installation positions, and aluminum alloy Wing Struts.
- The aircraft is made of high-quality materials such as balsa wood, composite material, aluminum alloy, carbon fiber, and covering film,it is light, strong, and exquisitely beautiful.
Parameter Specification
WingSpan: 1660mm(66in)
Full Length: 1300mm(52in)
Flight Weight: 2.3-2.6KG
Wing Area: 34.2d㎡
Wing Load: 67.25-76g/d㎡
Wing Angle of Incidence: 0.5°
Motor Thrust Angles: Down 0°& Right 2.5°
Pack Dimension: 133*44*16 (L*H*W)cm
Gross Weight: 5.16KG
The Center of Gravity (CG)
Approx. 58-65mm (measured from wing leading edge at root)
Power System
Motor: Sunnysky 3520
ESC: Sunnysky 60-80A
Propeller: Eolo 14x7E
Lipos: 6S 2200-3300mah/ 4S 2600-4000mah
Servo: SG5S (23x12mm)*6 (Aileron*2, Flap *2, Elevator*1, Rudder*1)
Servo
OMPHobby SG5S (23x12mm)*6 (Aileron*2, Flap *2, Elevator*1, Rudder*1)
Cord/lead: 600mm *1, 220mm*3, 450mm*2
Servo Arm: 2.5" Servo Arm
Recommended Settings of Dual Rates and Exponential of Control Surfaces
Aileron: Low rate 15 deg. 30% expo
High rate 38 deg. 45% expo
Elevator: Low rate 15 deg. 30% expo
High rate 45 deg. 45%expo
Rudder: Low rate 15 deg. 30% expo
High rate 48 deg. 50% expo
-
-
